Example Gasket Displacement Measurement Gasket Displacement Measurement

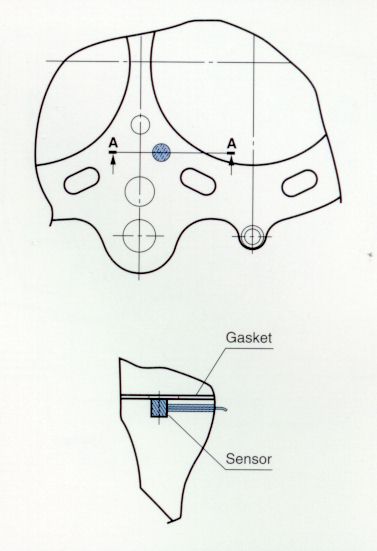

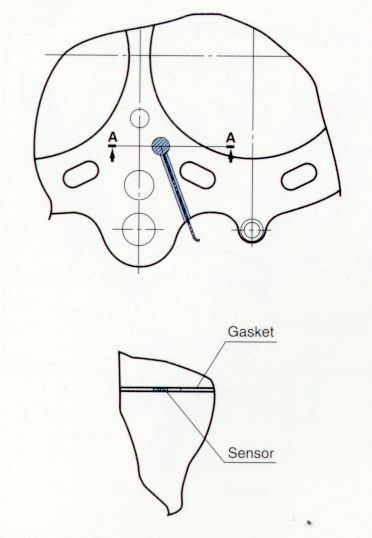

Installation Diagram
Purpose of Measurement A thin-type sensor is attached to the cylinder head gasket to measure the gap displacement between the gasket and cylinder head, or between the gasket and cylinder block. A sensor is attached to the cylinder block and a hole is drilled in the gasket to measure the gap displacement between the cylinder block and cylinder head.

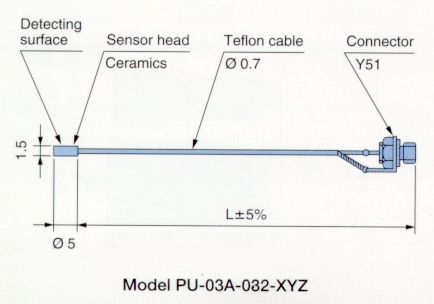

Specifications Operating Temperature: 180°C Maximum

Measuring Range: 0 to 1mm

*These are reference specifications.  If your operating conditions require different specifications, contact AEC.  We may have the sensor you need or would be pleased to manufacture a sensor to meet your requirements.

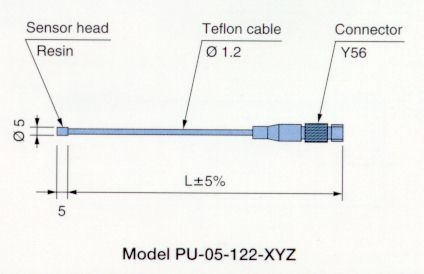

 Operating Temperature: 180°C Maximum

Measuring Range: 0 to 2mm

*These are reference specifications.  If your operating conditions require different specifications, contact AEC.  We may have the sensor you need or would be pleased to manufacture a sensor to meet your requirements.
Remarks Sensor dimensions should be selected according to thickness of gasket.  Please contact us for assistance.

 * The gasket needs to be at least 1.2mm thick.

 Sensor dimensions should be selected according to thickness of gasket.  Please contact us for assistance.
Sensor
